In this article, we discuss the role that Chromatic Dispersion (CD) plays when simulating the optical and latency performance of fiber spans during RF-over-Fiber (RFoF) testing procedures, along with introducing valuable strategies for effectively mitigating its detrimental impacts.
The Importance of Eliminating Chromatic Dispersion When Testing High-Frequency RFoF Devices
Chromatic dispersion is a critical factor in the performance of RFoF systems, particularly when replicating the fiber infrastructure for testing and certifying high-frequency transceivers and devices. This optical characteristic arises due to the wavelength-dependent velocity of light in optical fiber, causing signal distortion and degradation. Due to the undesired effects it causes, eliminating chromatic dispersion is essential during testing procedures for achieving the most accurate, optimized performance results of RFoF devices and systems.
Impacts of Chromatic Dispersion on High-Frequency RF Signals
There are several ways chromatic dispersion negatively affects signal optical transmissions:
- Phase and Amplitude Distortion: High-frequency RF signals are very sensitive to phase variations. CD causes different spectral components of the signal to travel at different speeds, leading to phase shifts and amplitude variations, which can distort modulation schemes including QAM and OFDM.

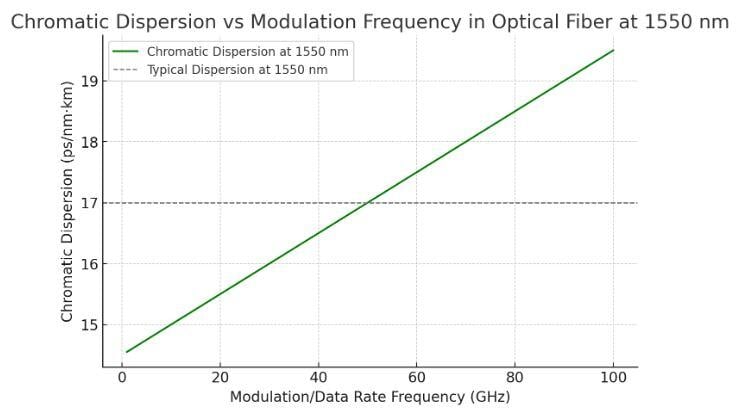

- Signal Integrity and Bit Error Rate (BER): Dispersion-induced distortions increase inter-symbol interference (ISI), degrading signal integrity in increasing BER, especially in high-speed communications applications. As the frequency increases, chromatic dispersion increases, so connected devices often have greater difficulty distinguishing individual bits. As an example, eliminating CD when testing 1GHz devices may not be deemed as important as eliminating it in a 40GHz system where the CD effects are drastically more significant.
- Reduced System Bandwidth and Dynamic Range: Since dispersion causes a spreading out of the optical signal over distance and time, it limits the available bandwidth and reduces the dynamic range, thus reducing transmission and system performance.
Valuable Strategies for Eliminating Chromatic Dispersion in RFoF Testing Applications
For the most accurate testing and evaluation of high-frequency RFoF device performance in the lab, the best practice is to use customized fiber network simulators for precisely replicating the intended optical fiber architecture connecting to the devices. Selecting the exact fiber types in complete lengths by distances or delay values of the intended RFoF network, the optical performance characteristics of the field network are experienced efficiently in the test lab. As part of setting up the testbed, there are several approaches one may consider for eliminating or significantly reducing chromatic dispersion:
- Use a Dispersion-Compensating Fiber (DCF): Designed and constructed to deliver a negative dispersion coefficient, a DCF negates chromatic dispersion effects. An appropriate length of DCF required for eliminating the CD of a transmission fiber can be achieved by a quick calculation based on the respective CD performance values of each type of fiber, along with the length of the transmission fiber.
Technical Note: Since signal latency is an important characteristic to evaluate when testing RFoF system performance, specialized dispersion-compensated optical time delays (also referred to as optical delay lines) can be an excellent solution in the network simulation setup. These fibers are constructed by combining the transmission and the dispersion-compensating fibers into a single continuous length that delivers the precise latency/time delay value required for the application while also eliminating the CD effects. - Use a Non-Zero Dispersion-Shifted Fiber (NZDSF): Categorized by the ITU as G.655 single-mode optical fibers, they are designed to significantly reduce chromatic dispersion, in some cases as much as 75% or more compared to standard G.652 fibers, although not eliminating it completely. Examples of popular G.655 fibers include Corning® LEAF® and OFS® TrueWave-RS® optical fibers.
- Optical Single-Wavelength Transmission: Using lasers with a very narrow linewidth can minimize dispersion effects.
- Electronic and Digital Signal Processing (DSP): Employing adaptive equalization and DSP techniques can help to correct dispersion-induced distortions in real-time while conducting tests.
It should be noted that since CD effects increase as the length of the fiber increases, some may recommend using shorter lengths of fiber in the test setup as a way to minimize dispersion. Unfortunately, that approach is ineffective since it will not provide an accurate representation of the intended network. Fiber latency values will be incorrect since complete lengths of fiber are not being used, while other important optical performance characteristics, including total span attenuation values, will also be very different.
With RF-over-Fiber devices and networks relied upon for supporting advanced aerospace, military, satellite, LiDAR, and mobile communications, it is important to invest in fiber network simulator solutions that include integrated capabilities to eliminate detrimental chromatic dispersion effects. This allows for the most accurate and optimized testing measurements, enabling the most effective decision-making about RFoF devices and network parameters before making significant resource commitments.
Specify a Dispersion-Compensated Solution for Your Next RFoF Application
