Light Source for Fiber Optic cables with mpo connectors

MPO Fiber Optic Light Source device for testing 12 and 24 MPO fiber optic cables

Key Features:

  • Useful for both 12-fiber and 24-fiber MPO connectors
  • Single or dual wavelength options, for both single-mode and multimode fibers
  • Continuous wavelength and modulation (270Hz, 1KHz, 2KHz) modes
  • Available as a complete test kit with MPO Power Meter

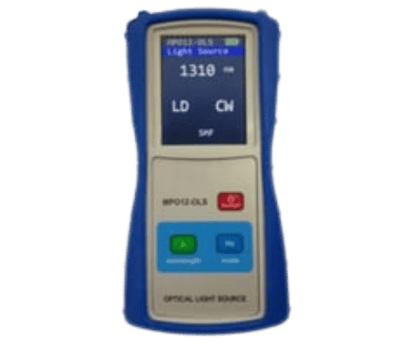

The handheld MPO Light Source from M2 Optics is used with an MPO power meter when needing to efficiently test fiber optic cables with MPO connections in the data center or network environment.

MPO Light Source Technical Specifications
Number of Fibers 12 or 24
Operating Wavelengths Single Wavelength: 850nm, 1310nm, or 1550nm
Dual Wavelength: 850nm/1310nm or 1310nm/1550nm
Mode CW, 270Hz, 1KHz, or 2KHz
Output Power > -10dBm
Stability ± 0.1dB (15 min), 0.2dB (8 hours)
Fiber type Single-mode or Multimode
Optical Interface MPO/PC with guide pin
Battery and Charger Rechargeable Li-Polymer, 1800 mAh 3.7V
Electricity Consumption 0.25A maximum
Operating Time 5 hours (with full charge)
Operating Temperature -20 to +55 C
Physical Dimensions 78mm x 155m x 35mm


MPO Light Source - Ordering Information

When requesting pricing or placing an order, please specify:

  • Number of fibers: 12 or 24
  • Operating Wavelengths: Single wavelength (850nm, 1310nm, or 1550nm) or Dual wavelength (850nm/1310nm or 1310nm/1550nm)
