Quickly Test & Verify Fiber Optic Cables with MPO Connectors



MPO Power Meter for testing 12 fiber and 24 fiber MPO cables Key Features:
  • 12 or 24 fiber MPO connections
  • 850nm, 1310nm, and 1550nm wavelengths
  • Simultaneously measures all fibers
  • Compact size with large data storage
  • Available as a test set with the MPO Light Source

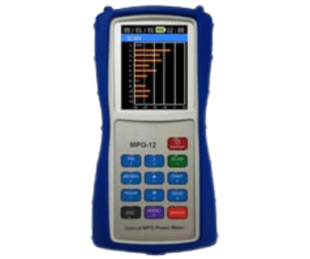

The MPO Power Meter from M2 Optics is an easy-to-use, handheld device that serves as a valuable tool for network and data center engineers tasked with testing multi-fiber cables with MPO connections efficiently.

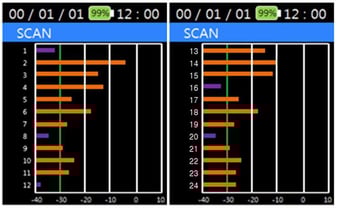

MPO Power Meter Graphical Screen Display
High-quality graphical display of all power levels



MPO Power Meter Technical Specifications
Number of Fibers 12 or 24
Measuring Wavelengths 850nm, 1310nm, and 1550nm
Display Range -40 dBm to +10 dBm
Absolute Power Accuracy < ±0.5 dB
Optical Power Resolution 0.01 dB
Measuring Unit dBm, dB
Optical Interface MPO/PC with guide pin
Battery and Charger Rechargeable Li-Polymer, 1800 mAh 3.7V
Electricity Consumption 0.25A maximum
Operating Time 7 hours (with full charge)
Operating Temperature -20 to +55 C
Physical Dimensions 78mm x 155m x 35mm
Device Accessories (included) Device case, USB cable, and battery charger


MPO Power Meter - Ordering Information

When requesting pricing or placing an order, please specify:

  • Number of fibers / MPO connection configuration: 12 or 24
