When leveraging fiber optic technology for high-speed data communications, maintaining optical signal integrity during transmission over long distances is essential for ensuring maximum performance. A primary technical characteristic that arises during fiber-based signal transmission is Chromatic Dispersion (CD), a phenomenon that can severely degrade signal quality. In this article, we’ll explore CD including its detrimental effects on signal transmission, along with introducing Dispersion Compensating Fiber (DCF), a special type of optical fiber designed to mitigate CD effects and successfully overcome this challenge.
What is Chromatic Dispersion?
Chromatic Dispersion, refers to the phenomenon where different wavelengths (colors) of light travel at different velocities when transmitted through an optical fiber. This occurs because the refractive index of the fiber material varies with wavelength, a property known as “material dispersion”. Additionally, waveguide dispersion, arising from the fiber's geometry, also contributes to chromatic dispersion. Unfortunately, the CD characteristic produces effects that are detrimental to achieving optical signal transmission performance.
What Causes Chromatic Dispersion?
There are two primary causes of chromatic dispersion:
- Material Dispersion: Caused by the inherent properties of the fiber material (usually silica glass), where the refractive index changes with wavelength.
- Waveguide Dispersion: Results from the fiber's physical structure affecting how light modes propagate.
Effects of Chromatic Dispersion on Light Signals
When chromatic dispersion occurs, what happens to the light signal? The two recognized effects of this phenomenon are:
- Pulse Broadening: As pulses of light travel through the optical fiber, chromatic dispersion causes them to spread out in time.
- Intersymbol Interference (ISI): Overlapping of broadened pulses leads to network devices having difficulty in distinguishing between bits, increasing error rates.

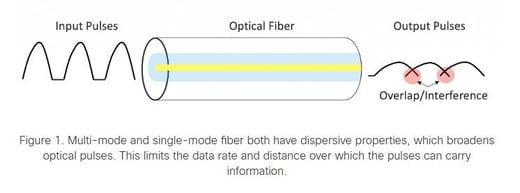

This diagram is courtesy of Cisco Systems Blogs
Negative Impacts of Chromatic Dispersion on Optical Signal Transmission
Because of these noted effects, chromatic dispersion can significantly impair optical communication system performance in a several ways:
- Signal Degradation: Pulse broadening reduces the clarity of the transmitted signal, making it harder for the receiver to interpret data accurately.
- Limited Bandwidth: Dispersion restricts the maximum data rate that can be transmitted over a given distance.
- Increased Bit Error Rate (BER): Overlapping pulses increase the likelihood of bit errors, necessitating complex error correction methods.
- Reduced Effective Transmission Distance: Without dispersion compensation, CD limits how far a signal can travel before becoming unintelligible to network devices.
With chromatic dispersion negatively impacting optical signal performance along with overall network performance, it creates a technical hurdle that must be addressed by network operators. One of the primary solutions for successfully minimizing or even eliminating chromatic dispersion is using dispersion compensating optical fiber.
What is Dispersion Compensating Fiber (DCF)?
Dispersion Compensating Fiber, often abbreviated DCF, is a type of specialty optical fiber that is designed and constructed to exhibit negative chromatic dispersion characteristics over a specific wavelength range. It is used to effectively counteract the positive chromatic dispersion value accumulated in standard single-mode fibers during signal transmission. By introducing a DCF into a fiber span, the overall dispersion can be significantly minimized or even effectively neutralized, preserving the signal quality and enhancing system performance.
Designing and Manufacturing DCF
A dispersion compensating fiber is designed and engineered to have dispersion characteristics that are opposite to those of standard transmission fibers. Simply put, its negative dispersion characteristics counteract the positive dispersion characteristics of an optical fiber. The key elements of its design include:
-
Negative Dispersion Coefficient: This is achieved by altering the refractive index profile to produce negative dispersion at the operating wavelength.
-
Tailored Refractive Index Profile: This is accomplished using dopants like Germanium or Fluorine to modify the core and cladding indices.
DCF Manufacturing Techniques
There are several manufacturing techniques that companies designing and manufacturing DCF often employ, including:
-
Modified Chemical Vapor Deposition (MCVD): A process where layers of doped silica are deposited inside a hollow substrate tube.
-
Outside Vapor Deposition (OVD): Silica soot is deposited onto a rotating rod and later consolidated into a solid preform.
-
Plasma Enhanced Chemical Vapor Deposition (PECVD): Uses plasma to deposit doped layers at lower temperatures.
Where and How DCF is Applied in a Network or Test Setup
Since a fiber optic network and the deployment of devices across the network will vary depending upon its architecture and intended performance goals, there are different ways engineering teams can deploy dispersion compensating fibers in both the real network environment or in the test lab. These approaches include:
-
Pre-Compensation: Placing a DCF before the primary transmission fiber to pre-adjust the signal at the beginning of the span.
-
Post-Compensation: Placing a DCF after the primary transmission fiber to adjust the accumulated dispersion at the end of the span.
-
Distributed Compensation: Integrating DCF segments throughout the transmission path.
By using DCF, the negative impacts of chromatic dispersion like signal degradation from pulse broaden and increased BER are mitigated, enabling improved signal reach and integrity.

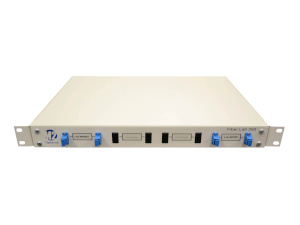

In terms of installing or implementing DCF, the most common solution approaches are typically in either rack-mount chassis or a modular style format. It is common to see/hear them referred to as Dispersion Compensators, Dispersion Compensating Fiber Modules, or other similar names.

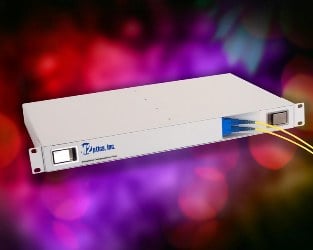

Above: DCF in a 1RU rack chassis
Determining the Appropriate Length of DCF To Compensate for a Length of SMF
Since most DCF manufactured provides a much higher negative dispersion specification compared to the positive dispersion specification of the transmission fiber on a physical length/distance (per-meter or per-kilometer) basis, a significantly shorter length of DCF will be needed to compensate for a length of transmission fiber. Additionally, not all DCF offers the same negative dispersion performance specification between different manufacturers. In some instances, the performance specification can even vary slightly between different spools from the same manufacturer.
To calculate the appropriate length of DCF needed to compensate for a length of transmission fiber, one must know the positive dispersion specification of the transmission fiber and the negative dispersion specification of the DCF. It then becomes a mathematical scenario to determine the proper length of DCF needed to compensate for the length of the transmission fiber.
Here is a basic example in which we will calculate the approximate length of DCF needed to compensate for a 50km length of standard G.652.D single-mode fiber:
Fiber Type and Dispersion Value
- 50km of G.652.D single-mode fiber; (+) 18ps/nm*km @ 1550nm
- Dispersion Compensating fiber; (-) 144ps/nm*km @ 1550nm
Calculations
- SMF: total dispersion value for 50km (50*18) = 900
- Resulting DCF length (900/144) = 6.25km
As shown above, in this scenario, a DCF length of 6.25km would be required to completely mitigate the chromatic dispersion of the 50km transmission fiber. If the negative dispersion value of the DCF was higher (ie, -160 vs -144) and thus compensating more on a per-km basis, then a shorter length of DCF would be needed. Alternatively, if the dispersion value of the DCF was lower (ie, -110 vs -144) then as expected, a longer length of DCF would be needed. For the most precise calculations, obtaining the exact CD value of each fiber allows for the greatest degree of DCF length accuracy.
Applications of DCF in Fiber Optic Testing and Networking Communications
Telecommunications Service Providers and Data Centers
Since the chromatic dispersion of an optical signal accumulates as the distance increases, mitigating CD is important for virtually any type of medium to long-distance fiber spans including metro, regional, long-haul terrestrial, and long-haul submarine networks.
Multi-Channel WDM Transmission Systems
Additionally, DCF is critical in WDM systems where multiple channels are transmitted simultaneously, each at different wavelengths, so enabling devices to more easily interpret data while reducing bit error rates is essential.
Fiber Optic Testing
- Network and Latency Simulation Testing: When utilizing fiber network simulators to replicate the optical characteristics and latency of complete fiber spans, DCF can be integrated into the spans to mimic real-world scenarios or to create variable performance conditions during R&D, device certification, and system demonstration efforts.
There are some scenarios for which a more specialized DCF solution is required, for example, simulating the optical time delay of high bandwidth RF-over-Fiber communications. This testing application requires the fiber to be dispersion compensated, but since it is a time delay, must be also be the exact physical length to produce the accurate delay value. Essentially, it is a dispersion-compensated optical delay line, and therefore requires a more advanced calculation to produce a precise length of fiber with the correct blend of SMF and DCF to achieve the intended delay value with no chromatic dispersion. -
Calibration of Testing and Networking Devices: Ensures that devices test for CD properly and/or perform accurately under various dispersion conditions.
Customized DCF Solutions for Your Test Lab or Network
Do you have additional questions about dispersion compensating fibers or require DCF for your test lab or network application? Leveraging over two decades of expertise designing and supplying customized DCF solutions to entities across many sectors, the team of fiber experts at M2 Optics is available to assist you in any manner.
