iN-lINE fIBER rEFLECTORS FOR otdr & fIBER mONITORING

1650nm FBG Optical Reflectors for OTDR and Fiber Monitoring
  • 1650nm FBG optical reflectors
  • Narrow reflection window of +/- 5nm
  • In-line, quick plug style for easy installation

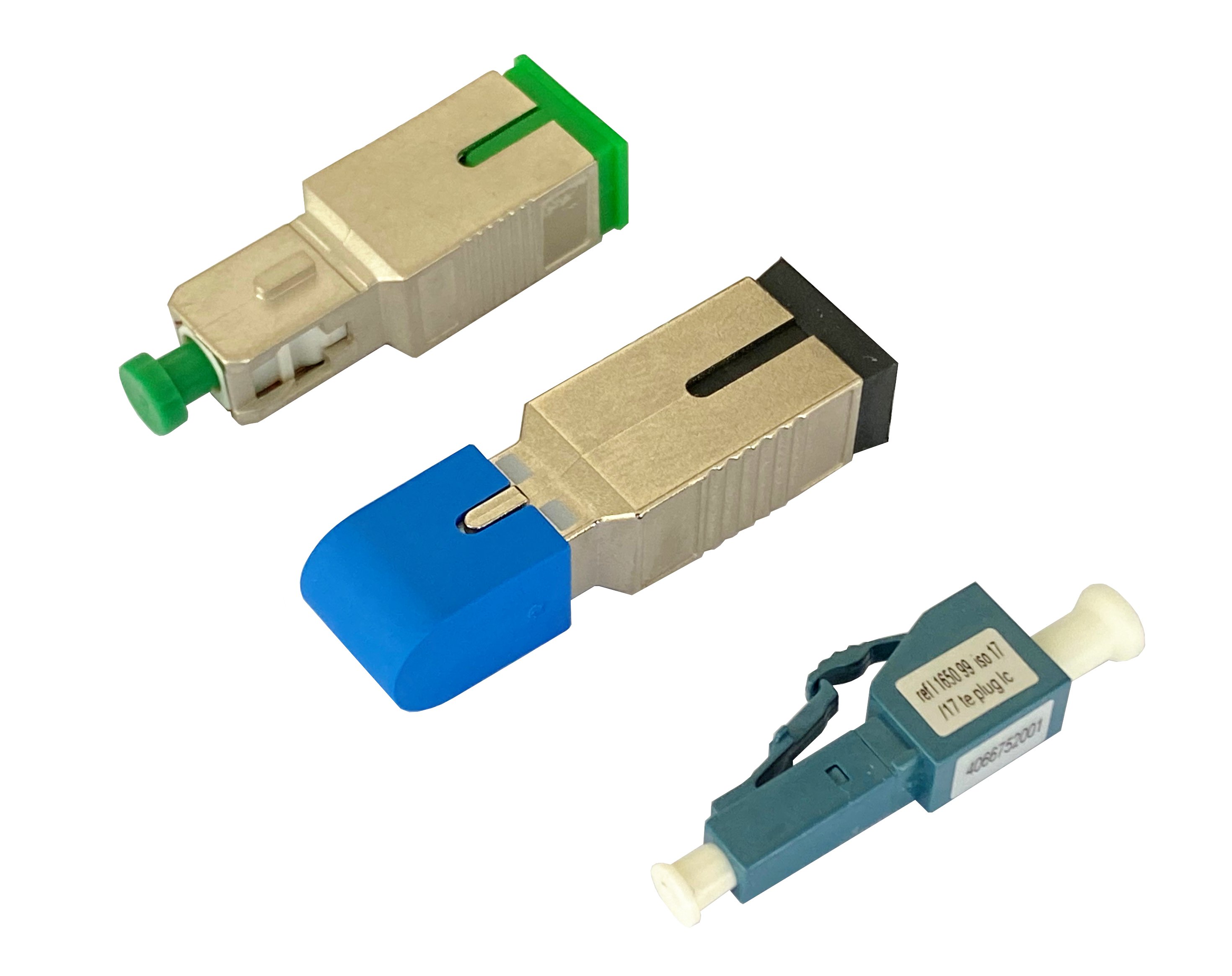

  • LC, LCA, SC, SCA connector types
  • Useful for OTDR, fiber monitoring systems, and PON applications

These 1650nm optical reflectors with Fiber Bragg Grating (FBG) technology are designed specifically for OTDR, PON/FTTx, and fiber monitoring system applications that require and/or benefit from a strong back-reflection of the optical test signal. The in-line, attenuator-style housing allows for quick and easy installation into all network environments.

Providing a narrow reflection window (1650nm +/-5nm), these components allow all single-mode transmission bands from 1260nm to 1625nm to pass without interference, while reflecting only the 1650nm band for testing and monitoring purposes. In addition to highly reliable performance and low insertion loss, they are available with LC/PC, LC/APC, SC/PC, and SC/APC connector options.

When you are ready to take the next step or if you require additional technical specifications, contact M2 with the details of your specific requirement:

  • Preferred connector type(s)
  • Quantity

Upon receipt of the inquiry, a member of the M2 team will quickly contact you with the information requested.
