This unique system is designed for Telecom and FTTH operators seeking a cost-effective method for monitoring their entire fiber network from end-to-end. Contact us to receive more information, as this system has been chosen for use by some of the largest operators worldwide for new and existing fiber deployments.
The PON system includes two main components:

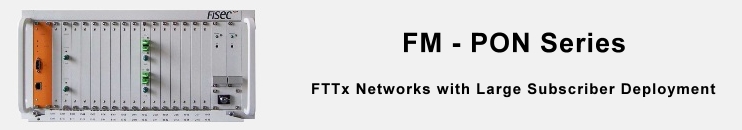

PON Server
- Chassis installed in the Central Office, runs 24/7 unattended
- Identifies fiber faults - specific segment or complete branch
- Instant alerts sent via email or SNMP
- 96 ports per chassis allows for monitoring thousands of subscribers
- 1625nm signal - no interference with live data
PONy Portable C-OTDR Device
- Used by field technicians for individual line measurements on CO side
- Pinpoints exact location of issues after splitters
- Eliminates visits to subscriber premises
- Significant cost savings vs purchasing traditional OTDR with PON testing

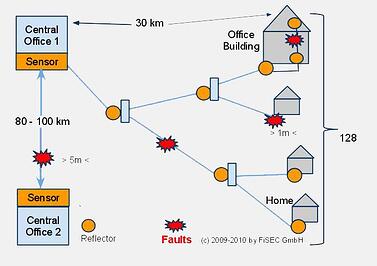

Flexible Monitoring for All Passive Networks
Since monitoring requirements may vary in every network, FM-PON provides maximum flexibility by allowing users to choose exactly which segments to monitor:
